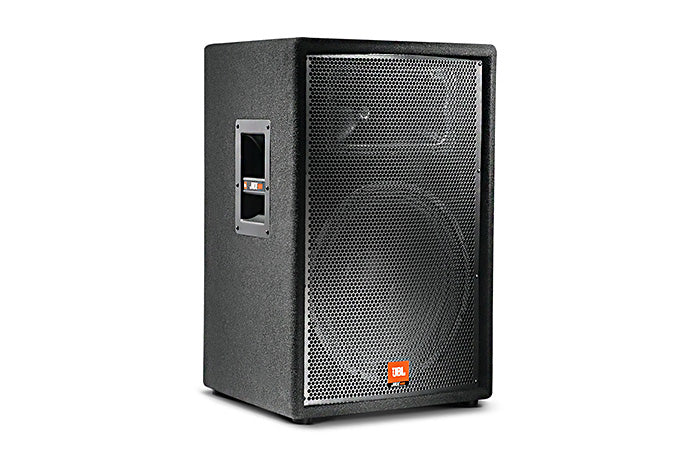

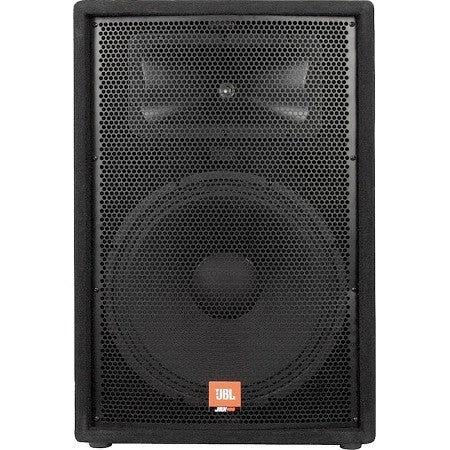

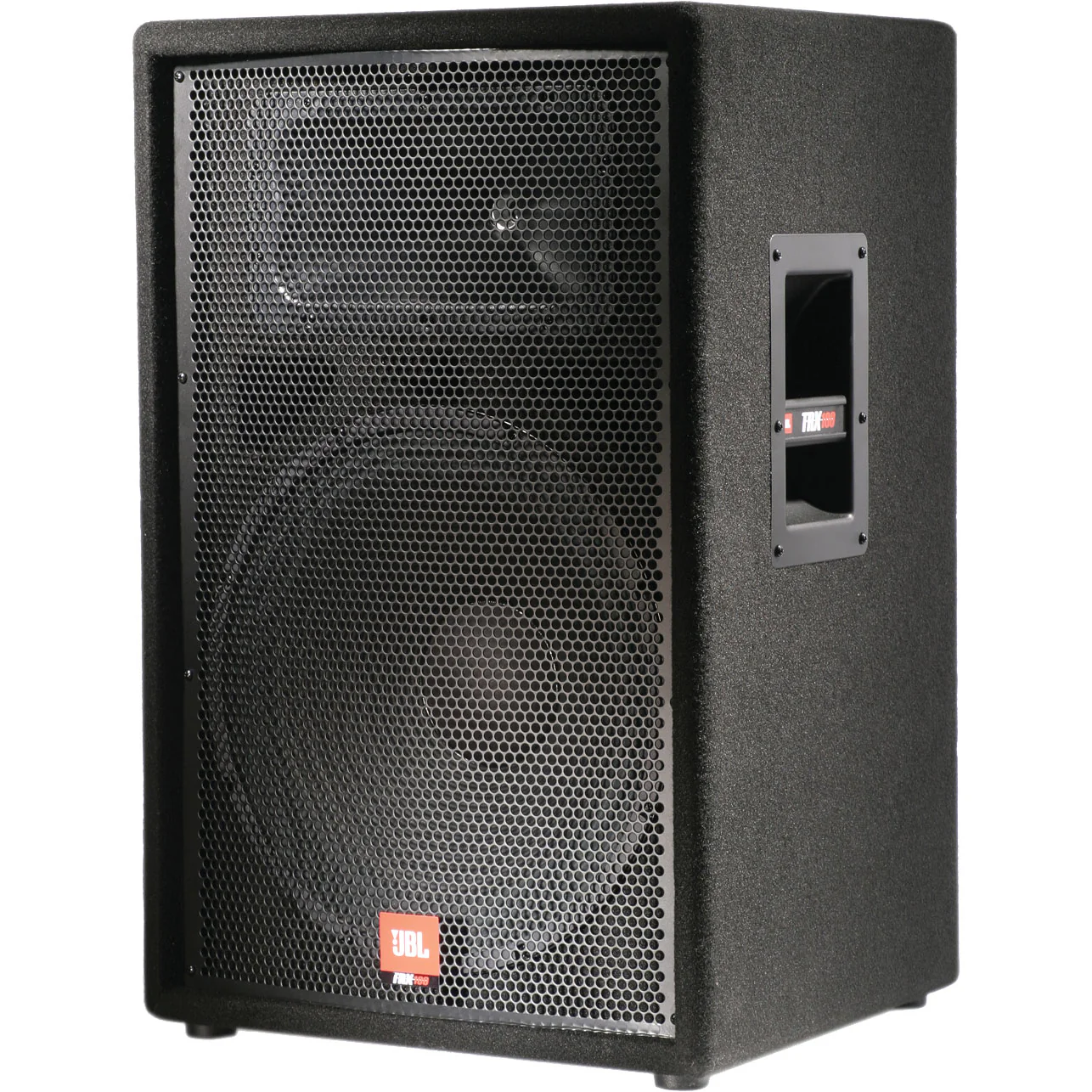

JBL Passive 15" Two-Way Loud Speaker JRX115

Features:

JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.

Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.

The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.

High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.

Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.

The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.

SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Non-resonant, all-steel handles are used.

Attractive 18-gauge perforated, steel grille protects components from damage.

Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

Tech Specs:

Power Rating

250 W / 1000W

Frequency Range

38 Hz - 16 kHz (-10 dB)

Dimensions(H x W x D)

699 mm x 460 mm x 432 mm(27.5 in x 18.1 in x 17 in)

Frequency Response

50 Hz - 12.5 kHz (±3 dB)

Sensitivity

98 dB SPL (1w/1m)

Nominal Impedance

8 ohms

Recommended Amplifier Power

250 W to 500 W into 8 ohms

Maximum SPL

128 dB

Nominal Dispersion

90° x 50°

Crossover Frequency

1.6 kHz

Weight

27.4 kg (61 lb)

High Frequency Driver

JBL 2412 1 in exit compression driver mounted on ProgressiveTransition™ Waveguide

Low Frequency Driver

JBL M115-8A

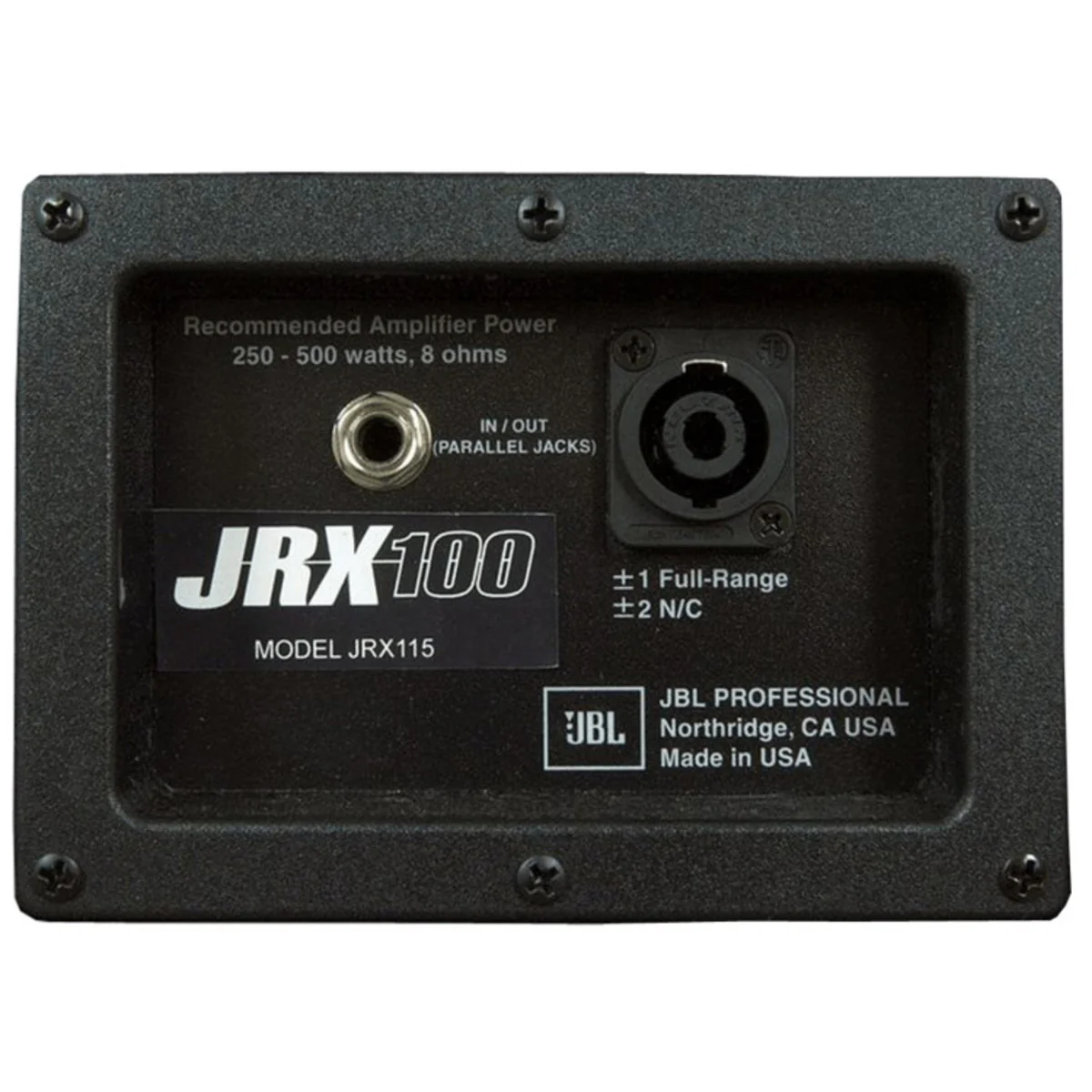

Input Connectors

Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel
